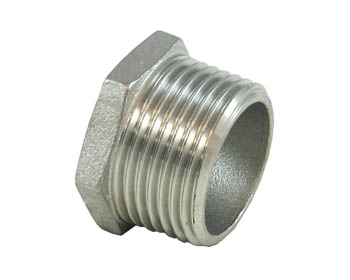

RMX07.. – REDUCING BUSCHING M/F BSPT X BSP

Thread 1: EN 10226-1  2006 ( Ex ISO 7/1)
Thread 2: EN 10226-1  2006 ( Ex ISO 7/1)

Tollerance: ISO 4144: 2003


Note: standard mounting is done according to UNI EN 10226:2006 (Ex UNI/ISO 7/1). Therefore if you mount a male according to UNI/ISO 228 with a female according to UNI EN 10226:2006 (Ex UNI/ISO 7/1) proper mounting is not guaranteed.

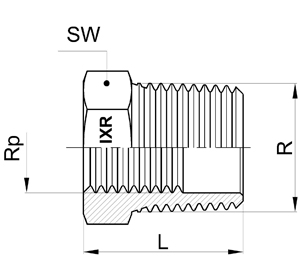

Order code R Rp L SW
RMX0701 1/4" 1/8" 14.5 15
RMX0702 3/8" 1/8" 16 18
RMX0703 3/8" 1/4" 16 18
RMX0704 1/2" 1/4" 19.5 23
RMX0705 1/2" 3/8" 19.5 23
RMX0706 3/4" 3/8" 21 28
RMX0707 3/4" 1/2" 21 28
RMX0708 1" 1/2" 24 35
RMX0709 1" 3/4" 24 35
RMX0710 1.1/4" 1/2"
RMX0711 1.1/4" 3/4" 27 44
RMX0712 1.1/4" 1" 27 44
RMX0713 1.1/2" 3/4" 27 49
RMX0714 1.1/2" 1" 27 50
RMX0715 1.1/2" 1.1/4" 27 50
RMX0716 2" 1" 32 62
RMX0717 2" 1.1/4" 32 62
RMX0718 2" 1.1/2" 32 62
