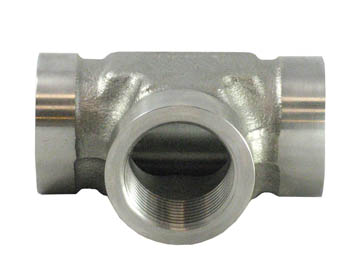

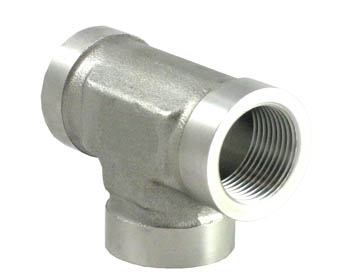

AUX37.. - TEE ADAPTER F/F/F BSPP

Threads: BSPP UNI/ISO 228

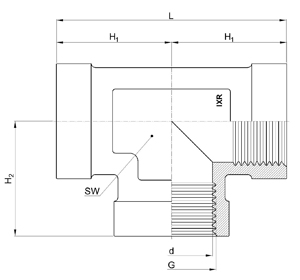

Order code G L H1 H2 d SW
AUX3701 1/8" 40 20 20 8.6 17
AUX3703 1/4" 45 22.5 22.5 11.8 19
AUX3705 3/8" 52.4 26.2 26.2 15.2 24
AUX3707 1/2" 63 31.5 31.5 19 27
AUX3709 3/4" 67 33.5 33.5 24.6 36
AUX3711 1" 86 43 43 30.7 41
AUX3713 1.1/4" 102 51 51 39.3 50
AUX3715 1.1/2"
